Accessorize Your Breakmate

All Paypal orders now include a flat $10 shipping charge.
Note some items include additional S&H due to insurance, size or weight.
Pricing is changing effective immediatly for most items due to lack of inventory.

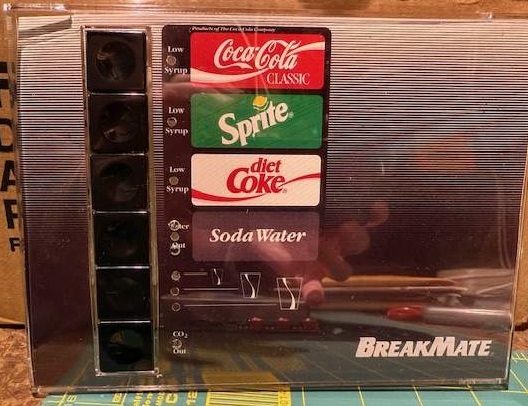

Six Button Front Panel Expansion

The six button front panel expansion adds the options to dispense soda water only and to select drink size. Comes with your choice of 3 flavor stickers (please specify flavors in payment notes) and a new flavor card.

Six button front panel, New flavor card

$50.00

1 Six Button Front Panel

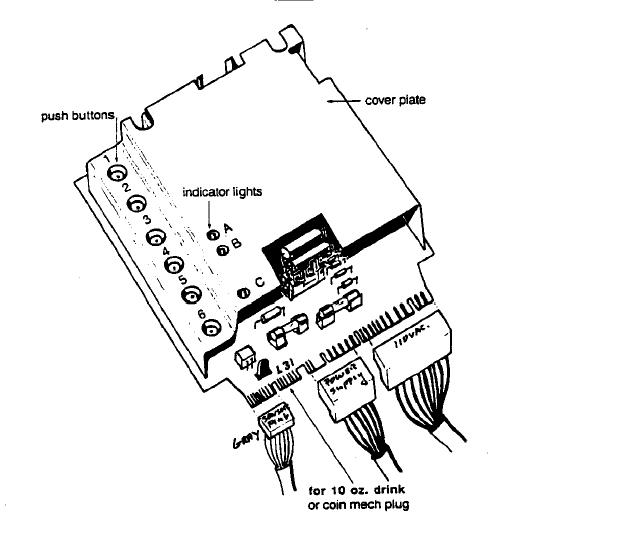

Drink Size Modification Jumpers

Two drink size modification jumpers are available for the Breakmate. One will force the Breakmate to dispense 10 ounce drinks only. The other jumper offered is an exclusive hack from Mr. Breakmate that will allow you to toggle between 6 and 10 ounce drinks (assuming you purchased the 6 button panel expansion above). The hacked jumper will turn your small drink into an "Extra Large Drink" so you need to print out this little label to go over your "small drink" label on the flavor card.

These jumpers do not work if you have a coin-op installed, since the jumpers attach to the control board on those same pins.

Size Modification Jumpers
$5.00, 10 ounce only

1 Standard 10 Ounce Only Jumper

$10.00, 6 & 10 ounce toggle
1 Hacked 6 & 10 Ounce Toggle Jumper



External CO2 Adapter

For those of you who can't get the special Breakmate CO2 bottles refilled locally, this adapter will let you connect the Breakmate directly to a standard CO2 bottle that you can get filled anywhere. In addition to a standard CO2 bottle, you must supply a CO2 regulator capable of reading up to 120 PSI. We include a brand new dual gauge high pressure CO2 regulator in our External CO2 Adapter KIT (below) along with all the other fittings you will need.

External CO2 Adapter Only
$69.00, For just the adapter & 10ft. hose

1 External CO2 Adapter

External CO2 Adapter KIT
$159.00 + $5 Additional Shipping
Same as above, but also includes the required 120 PSI regulator (new) and all fittings
1 External CO2 Adapter KIT



Water Jug Attachment

If plumbing is not your cup of tea, or you simply can't run a water line to the Breakmate then the Water Jug attachment will solve all your troubles. This brand new attachment is actually a separate contained pumping system. It operates as needed (a.k.a. on demand) and easily connects to the back of the Breakmate where the water line normally would attach. The water jug used (not included) is a standard 3 or 5 gallon water cooler jug. For best flavor, it is recommended that you fill the water jug with filtered water or get it refilled wherever you purchased the jug.

The Water Jug attachment comes with a 1 year manufactures warranty.

Water Jug Attachment, New

$175.00 + $6 Additional Shipping

1 Water Jug Attachment

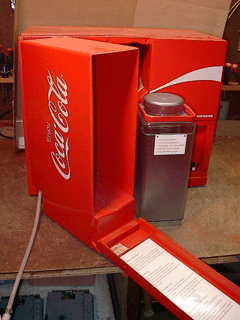

Watermate Attachment

The Watermate attachment is the original accessory for the Breakmate that eliminated the need for a permanent water line installation. The Watermate has an internal pump and a reservoir that holds a little more than a gallon of water.

For best flavor, it is recommended that you fill the reservoir with filtered water (the gallons from the supermarket work well). Installing the Watermate will depend on whether or not you Breakmate has a black plug with a flap over it on the back left side. If so, then installation is as easy as plugging it in and hooking up the water line. Otherwise you will need to run three wires from the Watermate into the Breakmate for power. This procedure is not complicated and we can guide you through it. The Water Jug Attachment (above) is recommended for easiest install.

Used Watermate Attachment, Limited Availability

$180.00 + $10 Additional shipping
Please select the correct model below (hardwired or with plug). Plug models are an additional $10.

1 Watermate Attachment Hardwired
1 Watermate Attachment with plug

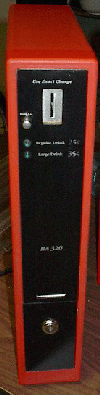

BA-320 Coin-op Attachment

The Coin-op attachment shown here is the top of the line BA-320. It offers multiple coin support with easily programmable amounts in 5 cent increments. The BA-320 also supports two drink sizes and prices. Installation is strait forward and requires minimal disassembly of the Breakmate. The procedure is not complicated and we can guide you through it if necessary. Here is a link to the install manual in compressed .zip format.

Other Coin-ops that have fewer functions are available at reduced cost (currently $35, see below).

BA-320 Coin-op Attachment, Used

$50.00 + $7 Additional Shipping

BA-320 Coin-op Attachment



BA-300 Coin-op Attachment

The Coin-op attachment shown here is the BA-300. It offers multiple coin support with easily programmable amounts in 5 cent increments. The BA-300 also supports two drink sizes via a toggle switch in the coin collection area. Installation is strait forward and requires minimal disassembly of the Breakmate. The procedure is not complicated and we can guide you through it if necessary. Here is a link to the programming manual in .bmp format. The install manual is the same for the BA-320, see above.

Other Coin-ops that have fewer functions are available at reduced cost.

BA-300 Coin-op Attachment, Used

$45.00 + $7 Additional Shipping

BA-300 Coin-op Attachment



Smart Board ECU with Front Panel

Smart Board ECU Unit.
The smartboard has several additional functions over the standard ECU. These include low/sold out syrup indicators, water-out, CO2 out, night security lockout and memory to retain settings through power outages.
The syrup low/sold out is all adjustable and basically counts how many drinks dispensed and will flash a light next to the flavor should it reach some set threshold.
The water-out requires an internal water flow sensor, which is rather rare (at least for the machines I've seen).
The smartboards are no longer available from Coke, so supply is very limited.
Most smart boards need a different front panel kit with either 3, 5 or 6 buttons. The correct front panel is included with the kit sold here. If you need just the ECU, then check out the parts page.

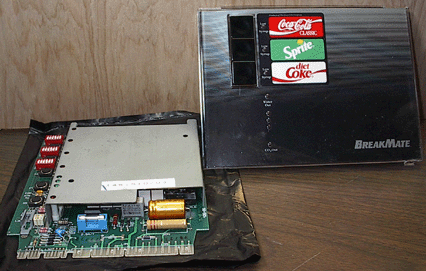

The first option available is the 3 button front panel kit which does not include size selection or the soda-water-only button.

Smart Board ECU kit with 3 button panel, New

$249.00 + $4 Additional Shipping

Smart Board ECU kit with 3 button panel

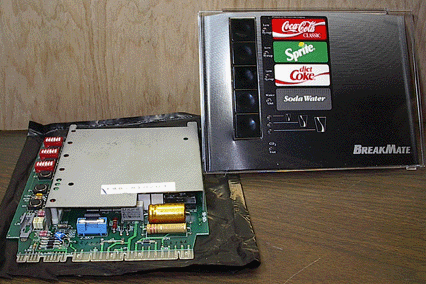

The second option available is the 5 button front panel kit which includes 3 size selection (3/6/9 ounce) and the soda-water-only button.

Smart Board ECU kit with 5 button panel, New

$265.00 + $4 Additional Shipping

Smart Board ECU kit with 5 button panel



Internal Paintball Tank Apparatus

This accessory was requested by several of my customers who could not have ANYTHING external to the machine, inlcuding the external CO2 adapter kit. This system uses standard paintball tanks for CO2 supply. The tanks are small enough to fit inside the machine without restricting the syrup door from closing.
The tanks can be filled anywhere paintball tanks are filled. Make sure you let them know you are using it for food.

This system is not for everyone as it is a little dangerous if mishandled. This is also a specialty item made to order, so expect at least a week for shipment, perhaps more if parts aren't on hand.

For more information on this system, click here. One slim 9 ounce CO2 tank is included. Others can be used but may interfear with the black clamping handle.

To be used at your own risk, no warranty expressed or implied!

Internal Paintball Tank Adapter

No longer for sale, sorry. Check out the link above and you can probably piece one together yourself.
